200Nm Pneumatic Torque Wrench Hand Operated Power Tool And For Tightening And Uns

Ask Lasest Price
Brand Name :	AI LE SEN
Model Number :	DSP
Certification :	ISO9001
Price :	Negotiate
Payment Terms :	D/P, T/T
Supply Ability :	100 Set Every month
Delivery Time :	In stock

Add to Cart

Product Details
Company Profile

200Nm Pneumatic Torque Wrench Hand Operated Power Tool And For Tightening And Uns

Pneumatic Torque Wrench Is A Hand-Operated Power Tool And Must Be Used Exclusively For Tightening And Uns

Product description

Pneumatic Torque Wrench is a hand-operated power tool and must be used exclusively for tightening and unscrewing bolted connections.

Never combine the wrench with other tools,such as impact screw drivers or drill.

The minimum and maximum torques can be taken from the table corresponding to the torque wrench and the corresponding setting value must be selected.

Consumption of compressed air: 20 l/s at 6.3bar Nominal capacity: 0.85 KW Min. and max. torque values are recorded in the supplied with each tool.

The wrench should only be put into operation using an air control unit with pressure reduction valve, oiler, filter and water trap

Put the wrench onto the bolted connection set with the pre-selected torque (see TORQUE SETTING). For the tightening procedure move the support armagainst the abutment. For the loosening procedure turn the support slowly towards the abutment by starting the motor. If necessary start motor at intervals! Make sure the support arm has a tight rest against the abutment. The reaction torque must be absorbed by the support arm at the

level of the socket.

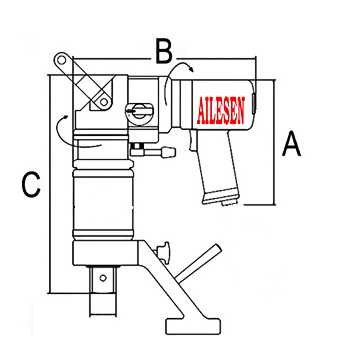

Type

Bolt size

Torque values

(Nm)

(mm)

weight

(Kg)

TWP096

M10-M20

200-900

364

186

251

200Nm Pneumatic Torque Wrench Hand Operated Power Tool And For Tightening And Uns

Warn!

On receipt of the product, visually inspect the item for any evidence of shipping damage. Please note shipping damage is not covered by warranty. If shipping damage is found notify the carrier immediately and refrain from putting the product into service. The carrier is responsible for repair and replacement costs resulting from damage in transit shipment.

Read and follow all the instructions and safety

warnings carefully prior to use of the equipment. Failure to do so could result in equipment damage or failure of the equipment or personal injury.

All operators should ensure that all necessary personal protective equipment as specified by their employer is worn when operating any hydraulic equipment. Safety shoes, safety glasses/ visor and protective gloves should be worn at all times. All relevant risk assessments should be completed prior to use of the equipment

Read this entire manual before operating the torque wrench. Failure to observe the following warnings could result in serious bodily injury.These instructions are part of the torque wrench. They must be kept in a safe place for later use and be passed along with the torque wrench if it is sold, loaned, or otherwise transferred.
