HPU150 High Pressure Pump Unitis Powered By Air Or By Hand, And
Delivers A Maximum Hydraulic Pressure Of 1500bar
Product Brief
1. The unit is powered by air or by hand, and delivers a maximum
hydraulic pressure of 1500bar
2. Analogue gauge, readings class 1.0.
3, Tank capacity app. 3.5 liter.
Technical parameter
Output Pressure | Max,1500 Bar |
Fuel Tank Capacity | 3.5L |
Pump Speed | ApproX.650 Cyyles/Min.At8.0 Bar Air Input |
Max,Flow At No Pressure | ApproX. 0.35 liItres/Min.At 8.0 Bar Air Input |
Weight | 16Kg |
Dimensions | 490*380*440(mm) |
Air Access Port | 1/2″ BSP |
LIQUID OUTLET PORT | 1/4″ MALE (CEJN 10.116.5252) |

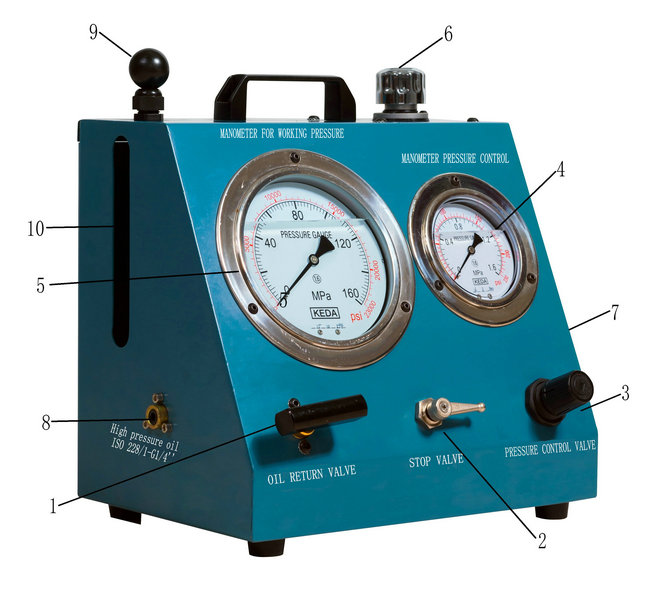

1. OIL RETURN VALVE 2. STOP VALVE(CYCLING VALVE)
3. PRESSURE CONTROL VALVE 4. MANOMETER PRESSURE CONTROL
5. MANOMETER FOR WORKING PRESSURE 6. FILLER CAP
7. STUD MARKED"AIR INLET" 8. STUD MAKRKED"HIGH PRESSURE OUTLET"
9. LEVER FOR HAND PUMPING 10. SLOT WITH BUSHING FOR LEVER
Note
If you need other accessories of the pneumatic high-pressure pump,
you need to purchase additional.
Company products
Fuel valve testing devices, pneumatic high-pressure pumps, manual
high-pressure pumps, electric high-pressure pumps, hydraulic
cylinders, hydraulic jacks and various hydraulic tools and
pneumatic tools.
These products are widely used in important fields such as
shipbuilding, marine engineering, aviation, metallurgical
equipment, mining, water conservancy engineering, wind power
generation, nuclear power engineering and so on.
Among them, fuel valve testing devices, pneumatic high-pressure
pumps, manual high-pressure pumps, and electric high-pressure pumps
have sufficient inventory and can be shipped at any time.
Hydraulic cylinders, hydraulic jacks and various hydraulic tools
are customized products that need to be designed and manufactured
according to user requirements. Usually the shipping cycle of these
products is about 30 days.
We are a complete hydraulic system supplier. If you need advice on
bolt connections, please contact us for free technical consultation
We can advise you competently and objectively. We will find a
suitable technical solution to bring you economic benefits.
