The Maximum Pressure Of Pneumatic Hydraulic High Pressure Pump Can
Reach 1200Bar
Product Brief

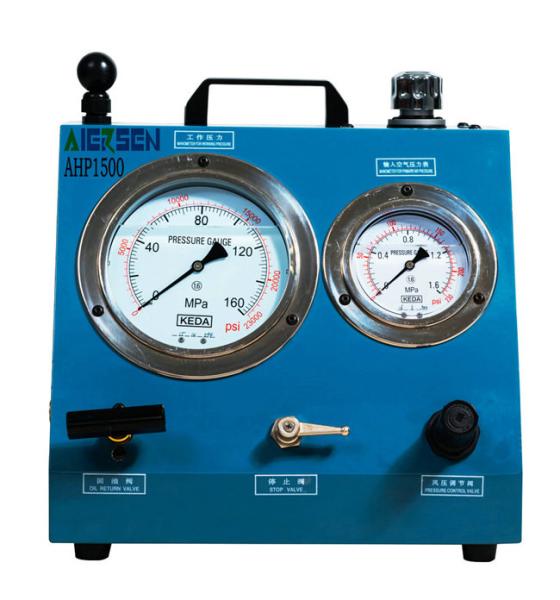

1, Pneumatic hydraulic pump converts air pressure into
high-pressure oil, and uses the low air pressure of the large-area
piston to better produce high hydraulic pressure at the small-area
piston end.
2, Various types of hydraulic tools can be connected to provide
power for hydraulic tools
3, Can provide up to 1200Bar pressure.
4, This hydraulic pump has a compact structure and a steel
protective shell, which is not easy to break
Unique hand-in-one design. It can be driven by compressed air or by
pressing the handle..
5, External pointer pressure gauge, easy to read.
6, Use stainless steel anti-vibration pressure gauge.
Technical parameter
Output Pressure | Max,1200 Bar |
Fuel Tank Capacity | 3.5l |
Pump Speed | ApproX.650 Cyyles/Min.At8.0 Bar Air Input |
Max,Flow At No Pressure | ApproX. 0.35 liItres/Min.At 8.0 Bar Air Input |
Weight | 16Kg |
Dimensions | 490*380*440(mm) |
Air Access Port | Iso228/1-G1/2 |
High-Voltage Output | Iso228/1-G1/4 |
Note
If you need other accessories of the pneumatic high-pressure pump,
you need to purchase additional.
Company Profile
1, Allison (Changzhou) Power Technology Co., Ltd.'s main business
is the research and development, manufacturing, sales, sales and
maintenance of two- and four-stroke diesel engine
pneumatic/hydraulic fuel injection valves and fuel pump test
equipment and hydraulic power units. Use our products Can reduce
ship maintenance costs.
2, We are now looking for people with lofty ideals who are willing to
work with the company for mutual benefit and mutual benefit to
jointly develop the hydraulic industry market; responsible for the
development and management follow-up of the customer groups in the
jurisdiction, establish long-term and stable cooperative relations
with the main customer groups in the region, and be responsible for
this The development of the regional blank market and the company
develop and grow together.
Company products
Fuel valve testing devices, pneumatic high-pressure pumps, manual
high-pressure pumps, electric high-pressure pumps, hydraulic
cylinders, hydraulic jacks and various hydraulic tools and
pneumatic tools.
These products are widely used in important fields such as
shipbuilding, marine engineering, aviation, metallurgical
equipment, mining, water conservancy engineering, wind power
generation, nuclear power engineering and so on.
Among them, fuel valve testing devices, pneumatic high-pressure
pumps, manual high-pressure pumps, and electric high-pressure pumps
have sufficient inventory and can be shipped at any time.
Hydraulic cylinders, hydraulic jacks and various hydraulic tools
are customized products that need to be designed and manufactured
according to user requirements. Usually the shipping cycle of these
products is about 30 days.
We are a complete hydraulic system supplier. If you need advice on
bolt connections, please contact us for free technical consultation
We can advise you competently and objectively. We will find a
suitable technical solution to bring you economic benefits.
