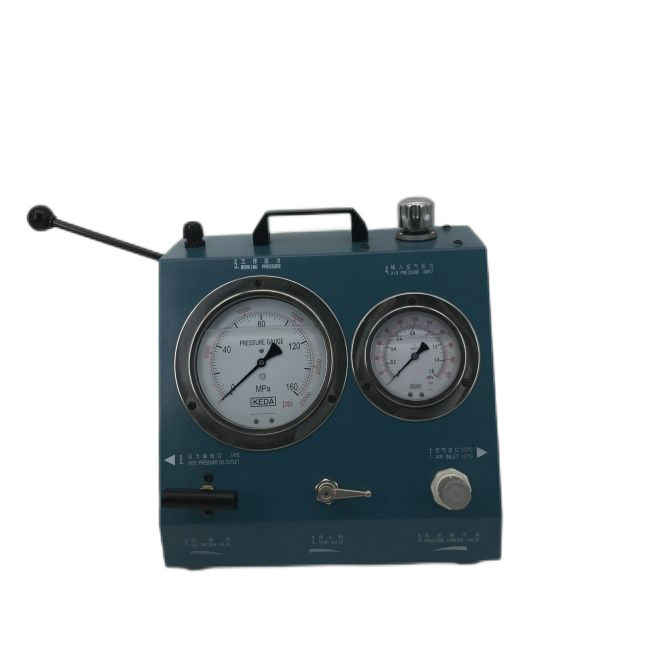

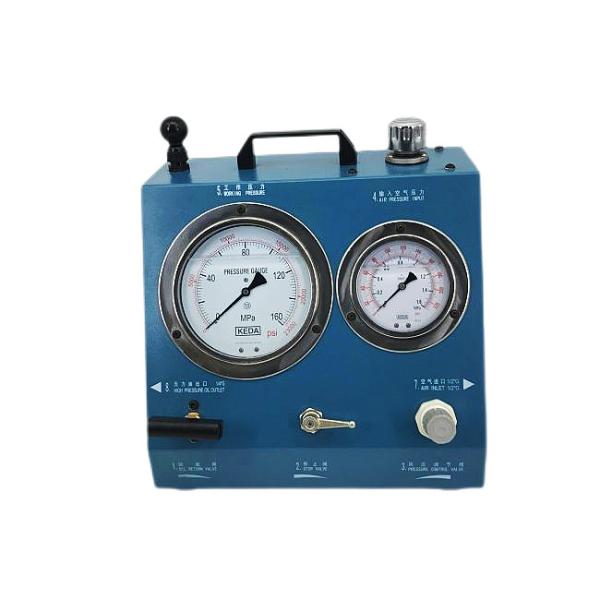

Portable Hydraulic Power Units for all hydraulic tools Hpu -1500
Product Brief
1, Pneumatic-hydraulic power supply for hydraulic tools
2, For operation of engine hydraulic tool series, i.e. hydraulic jacks
3, Internal pump(s), high-pressure pipes, ensurereliability and
efficiency
4, Can also be adapted for special applications like opening skf
couplings, opening/separating turbo chargers etc
5, External pointer pressure gauge, easy to read
6, Use stainless steel anti-vibration pressure gauge
Technical parameter
Output Pressure | Max,1050Bar |
Fuel Tank Capacity | 3.5l |
Hydraulic gauge | 1600Bar |
Max,Flow At No Pressure | ApproX. 0.35 liItres/Min.At 8.0 Bar Air Input |
Weight | 16Kg |
Dimensions | 490*380*440(mm) |
Air Access Port | Iso228/1-G1/2 |
High-Voltage Output | 1/4” BSP |
Note
If you need other accessories of the pneumatic high-pressure pump,
you need to purchase additional.
