2000 Bar High Pressure Hydraulic Pneumatic Pump

Ask Lasest Price
Brand Name :	AI LE SEN
Model Number :	AHP2500
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	D/P, T/T
Supply Ability :	500 units per month
Delivery Time :	Stock spot

Add to Cart

Product Details
Company Profile

2000 Bar High Pressure Hydraulic Pneumatic Pump

AHP 3500 W HYDRAULIC POWER UNITS Providing Up To 3300 Bar Hydraulic Pressure

principle

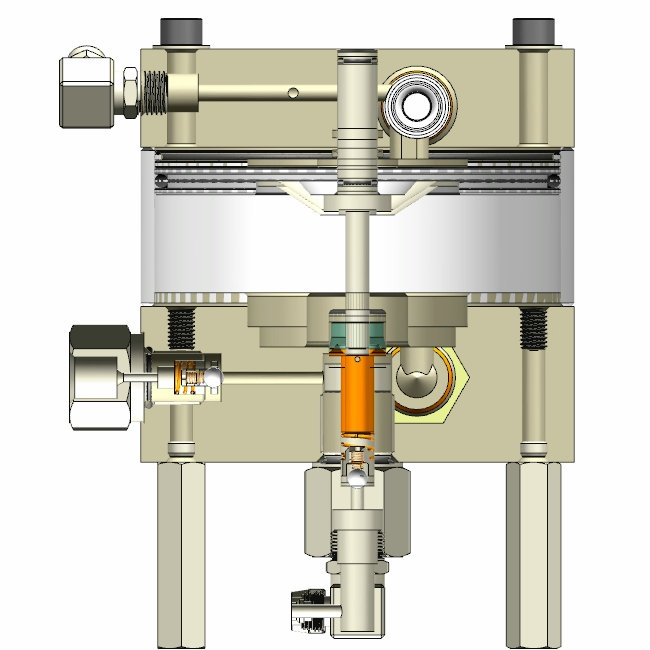

The pneumatic hydraulic pump converts the lower air pressure into high pressure oil, that is, using the low air pressure at the piston end with a large area to generate high hydraulic pressure at the piston end with a small area

Teature

Type	AHP2500
Air Side Material:	Anodized Aluminum
Hydraulic pressure (bar) output@input	2000@8
Area Ratio	1:282
Maximum displacement	About. 0.45 l/min 8.0 bar air input
weight(Kg)	8.5
Pressure oil outlet:	Customized on demand
Operating Temperature Range	0° to 140°F (-18° to 60°C)
