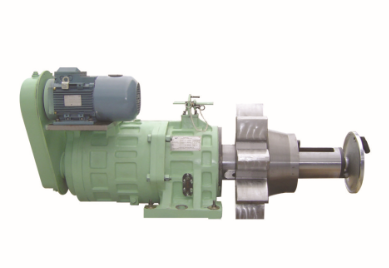

Turning Gear

This turning gear is used for cranking the crankshafts of large low speed diesel engines type L/S60MC.

Technical parameters:

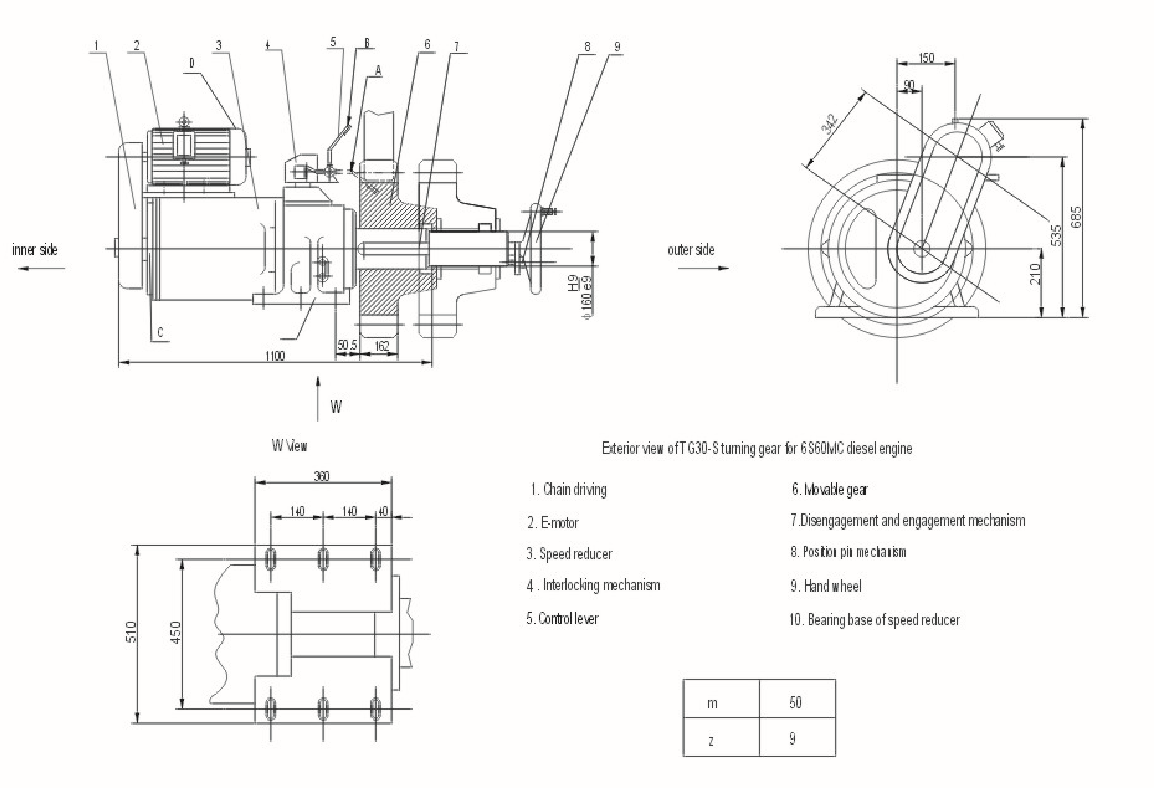

Type:TG30-L orTG30-S(Applicable to L/S60MC diesel engine)

Speed reducer∶

1. Rated output torque: 31000N·m

2. Max.output torque: 38400N·m

3. Output speed:0.97r/min

4.Rated power: 3.0KW-4Por3.43KW-4P

Type: TG150-C(Applicable to S/K90MC-C diesel engine)

Speed reducer∶

1. Rated output torque:94438N·m

2. Max.output torque:141657·m

3. Output speed:0.90r/min

4.Rated power:12.7KW-6P

Ailesen (Changzhou) Power Technology Co., Ltd. has been established for many years. It is a technologically innovative enterprise focusing on R&D, design, production and sales in the field of ultra-high pressure hydraulics. Since its establishment, the company has always adhered to the principle of talent-oriented and honesty.

The company's main products are: bolt tensioners, hydraulic nuts, hydraulic jacks, pneumatic hydraulic pumps, manual hydraulic pumps, electric hydraulic pumps, fuel injector test benches and various presses, hydraulic systems, intelligent hydraulics, etc. It covers many application fields such as steel, metallurgy, coal mining machinery, ships, wind power, hydropower and so on
