Hydraulic torque wrenches
Type:HH Series

Hydraulic torque wrenches are specially designed for applications where space is limited or where a particularly high output torque is required. hydraulic torque wrenchThe hand design utilizes high-pressure hydraulic power provided by a pneumatic or electric pump, creating a very high leverage force through a hydraulic piston.The hydraulic piston is connected to the ratchet wheel through the reaction force pawl, which engages with the teeth on the ratchet wheel to turn the nut in a forward manneror bolt head. When the piston returns, the reaction force ratchet is released. On the next piston stroke, the reaction pawl will again engage with theTeeth mesh. The maximum working pressure of allHH hydraulic torque wrenches is 700Bar. Has a heavy duty double acting piston,Quick and easy operation for precise tightening or loosening of nuts and bolts. Standard square drive torque wrench with various sizesThe hexagonal hollow wrench can be directly placed on the nut.n

Features of Hydraulic torque wrenches

1. large torque,Light weight, small size
2. High precision: using precision ratchet wheel, torque can be adjusted accurately
3. 360-adjustable reaction arm and tubing joint: 360 fine-tuning reaction arm, with 360×180 rotating tubing joint, can fully meet the operating requirements of different working environments
4. Wide range of use, with different sizes of sleeves, suitable for disassembly and assembly of various specifications of bolts

5. Multi-position reaction arm with safety lock

Purchase notice: Please inform us of bolt specifications, strength, opposite sides and diagonals of nuts
Means of transaction:Pay first and ship(FOB)

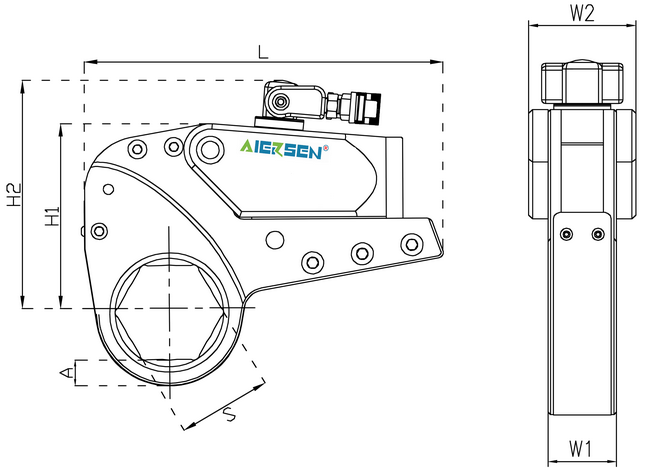

Reference data
