Brand Name : | AI LE SEN |
Model Number : | AHP1500 |
Certification : | IOS9001 |
Price : | Negotiate |
Payment Terms : | T/T, D/P |
Supply Ability : | 500 Set Every month |
Delivery Time : | In stock |

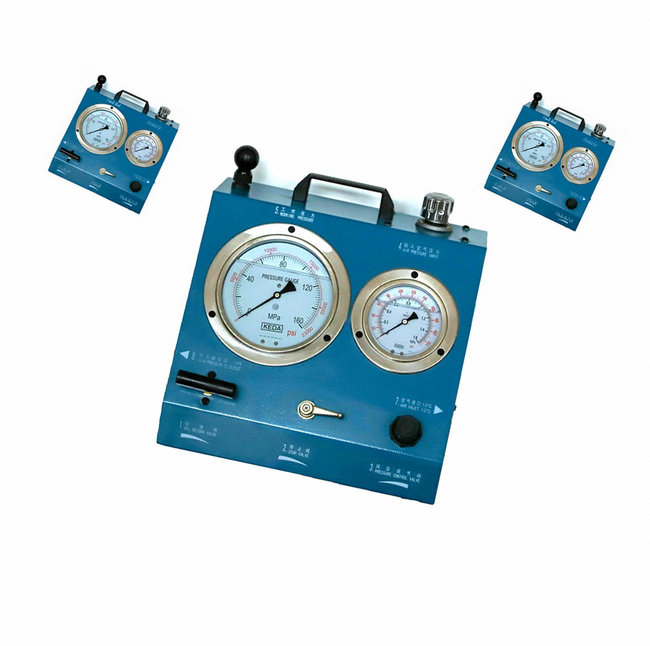

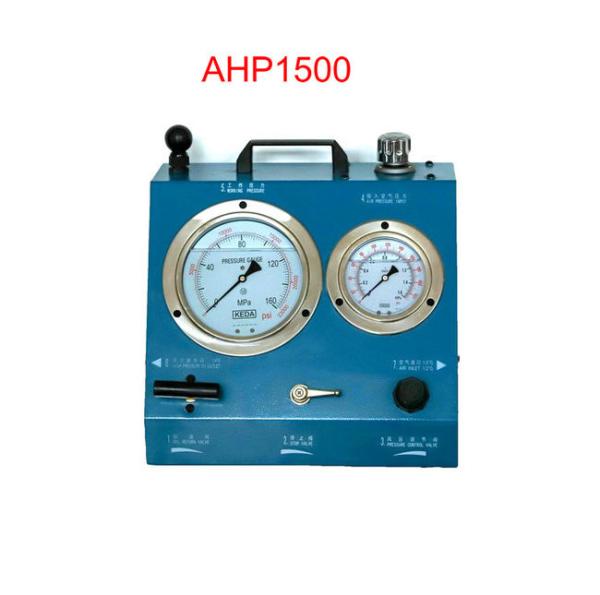

Air-Driven High Pressure Pump AHP1500
Product Brief
1, The unit is powered by air or by hand, and delivers a maximum hydraulic pressure of 1200bar.
2, For operation of engine hydraulic tool series, i.e. hydraulic jacks
3, Internal pump(s), high-pressure pipes, ensurereliability and efficiency
4, Can also be adapted for special applications like opening skf couplings, opening/separating turbo chargers etc
Technical parameter
Output Pressure | Max,1200Bar |
Fuel Tank Capacity | 3.5L |
Hydraulic gauge | 0-1600Bar |
Max,Flow At No Pressure | ApproX. 0.35 liItres/Min.At 8.0 Bar Air Input |
Weight | 16Kg |
Dimensions | 490*380*440(mm) |
Air Access Port | ISO228/1-G1/2 |
High-Voltage Output | ISO228/1-G1/4 |
Note
If you need other accessories of the pneumatic high-pressure pump, you need to purchase additional.
